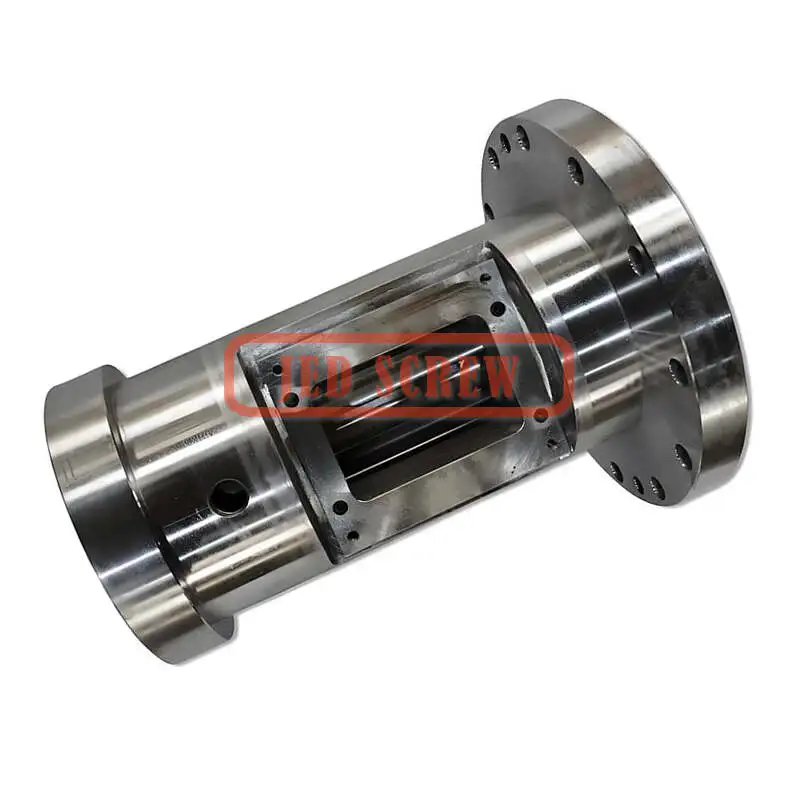

PP/PE/PPR high-efficiency pipe extruder screw barrel
PRODUCT PARAMETERS
JED SCREW 杰德螺杆
Description
The screw of a PE/PPR pipe extruder is the core component of a single-screw extruder, primarily used for melt plasticization and extrusion of plastics such as PE (polyethylene). The following is a summary of relevant technical parameters and features:

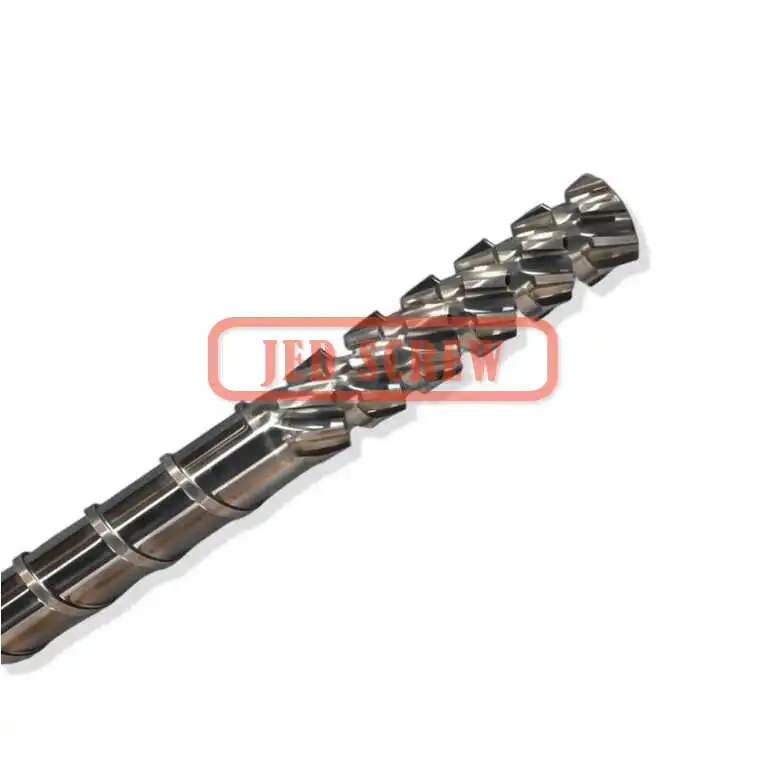

1.Screw Structure and Function
- Three-stage design: Typically divided into a conveying section, a compression section, and a metering section, each occupying one-third of the screw’s effective length. The conveying section preheats and compacts the material, the compression section plasticizes the material (typically with a compression ratio of 3:1), and the metering section steadily transports the melt to the die.
- Material: Wear-resistant alloy steels such as 38CrMoAl are commonly used to ensure hardness and aging resistance.
2.Technical Parameters
- Screw Diameter: Common specifications include 65mm (JEDSJ-65) and 75mm (SJ-75/33), meeting different pipe production requirements.
3. Applications and Supporting Equipment
- Applicable Materials: Designed specifically for PE, PP, and PVC, it can produce water pipes, gas pipes, carbon spiral pipes, and more.
- Supporting System: Requires a production line with a die, cooling water tank, and haul-off unit. For example, carbon spiral pipe equipment requires a wire threading die and a spiral cooling water tank.
Main technical parameters of high-efficiency screw (1:33)
| specifications | electrical machinery | speed（r/min） | production | Reduction gearbox |
| Ø45/33 | 45KW | 0-215 | 110KG | 173-7 |
| Ø60/33 | 90KW | 0-188 | 260KG | 225-8 |
| Ø65/33 | 90KW | 0-188 | 300KG | 225-8 |
| Ø75/33 | 132KW | 0-150 | 400KG | 280-10 |
| Ø90/33 | 185KW | 0-120 | 520KG | 315-12.5 |
| Ø120/33 | 315KW | 0-108 | 950KG | 395-14 |
| Ø150/33 | 400KW | 0-90 | 1200KG | 450-16.4 |
Main technical parameters of high-efficiency screw (1:383)
| JED主要技术参数 Main Technical Parameters (1:38) | ||
| 管材规格(mm) Diameter(mm) | 挤出机 Extruder | 实际最大挤出量(kg/h) Capacity(kg/h) |
| Ф20-Ф75 | Ф60/38 | 320 |
| Ф50-Ф250 | Ф75/38 | 550 |
| Ф160-Ф450 | Ф90/38 | 850 |
| Ф315-Ф630 | Ф120/38 | 1200 |
| Ф450-Ф800 | Ф120/38 | 1200 |
| Ф500-Ф1000 | Ф150/38 | 1400 |
| Ф710-Ф1200 | Ф150/38 | 1400 |
| Ф900-Ф1600 | Ф150/38 Ф75/38 | 1900 |
| Ф1200-Ф2000 | Ф150/38 Ф90/38 | 2200 |
| Ф1600-Ф2500 | Ф150/38 Ф120/38 | 2500 |
| Ф2000-Ф3000 | Ф150/38 Ф120/38 | 2500 |
FAQs
What types of products can we offer?

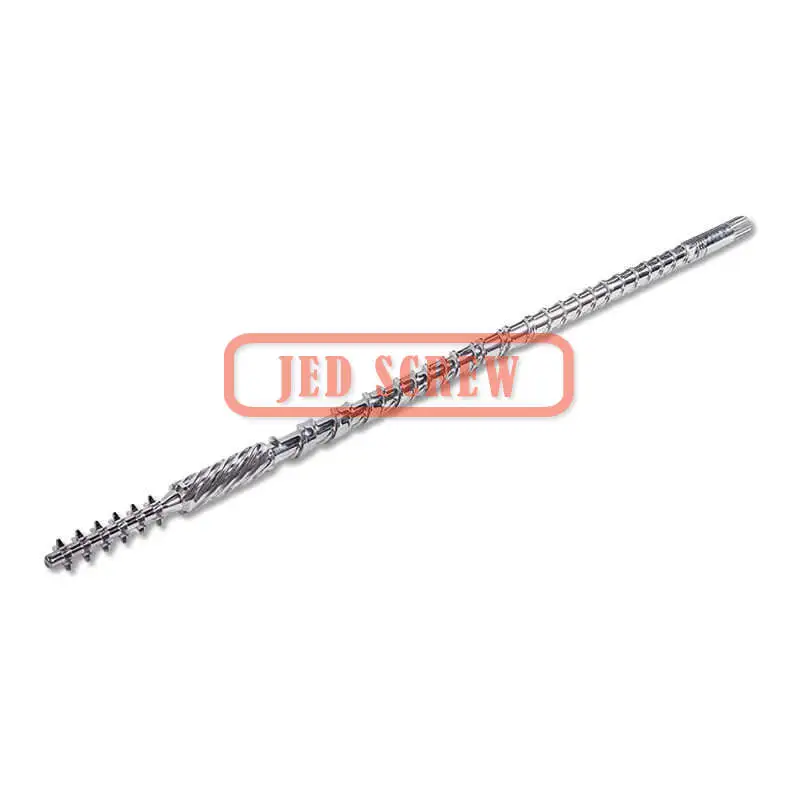

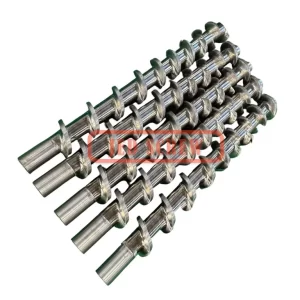

Product Category:

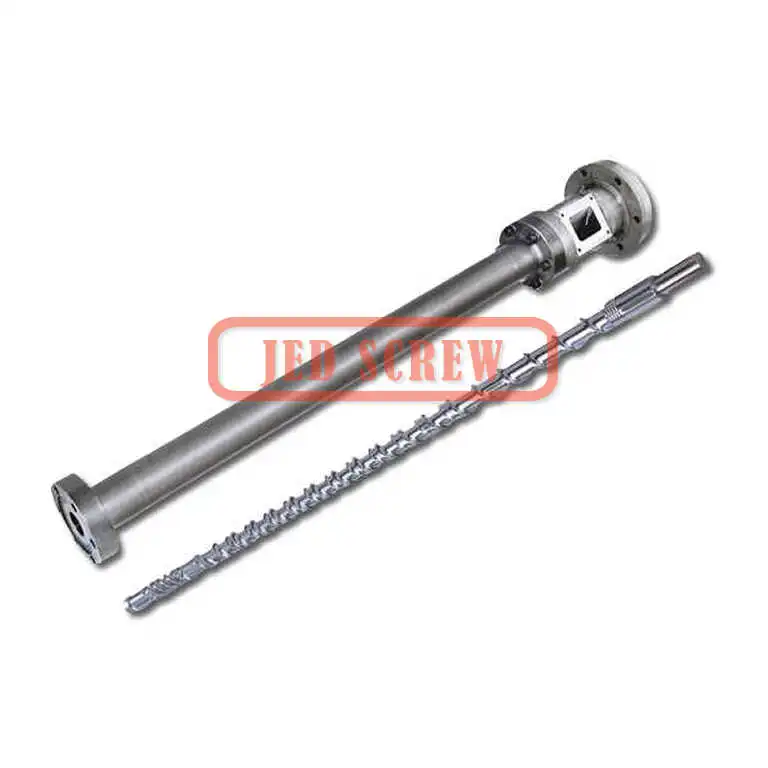

| Sheet extruder screw cylinder | Blow film extruder screw barrel | Blow molding extruder screw barrel | Recycling granulation extruder screw cylinder |
| Wire and cable extruder screw | Plastic steel strip extruder screw barrel | Wire drawing extruder screw barrel | Film coated extruder screw barrel |
| Cast film extruder screw tube | Plate extruder screw barrel | Spinning extruder screw barrel | Conical twin-screw tube |

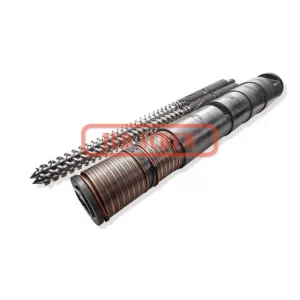

| Parallel twin-screw barrel | Injection molding machine screw cylinder | Food extruder screw tube | Chemical extruder screw barrel |
| Non standard screw cylinder | Customized extruder | ||
If some screw products do not have a list, please feel free to contact us by email and we will reply within 24 hours!
What logistics do we ship through?
We can quickly reach any country and region through sea freight, air freight, international express delivery, and other transportation methods. We have stock of standard sized screws and barrels, and once confirmed by the customer, they can be delivered within 5-7 days.
Can it be customized as per our requirements?
We have many experienced engineers who can quickly customize various types and types of screw barrel according to customer requirements. Before produce, technical will check every detail with salesman according with clients’ request. Under produce, every step will be inspected before next process. And every salesman will follow some time to make sure 100% correct and reduce communication error and work undelay. We put quality at a high level and the price is middle level.
What is our ordering process?
What services are included in the after-sales service?
Our sales team is familiar with the production and export processes and has nearly 10 years of customer service experience. Every salesperson can ensure that the customer’s requirements and our screw barrel are 100% accurate in production details. We will solve any cargo issues until the customer is satisfied.
