Cable and optical cable extruder screw barrel
PRODUCT PARAMETERS
JED SCREW 杰德螺杆
Description
With nearly a decade of solid technology and industry experience in the extrusion industry, the company has begun to invest heavily in the research and development of optical fiber and cable equipment to adapt to the increasingly fierce market competition and customer needs. It has achieved significant results in screw barrel optimization and quality, and has been recognized and supported by the majority of users, becoming their long-term loyal partner!
The product range and application we are good at:

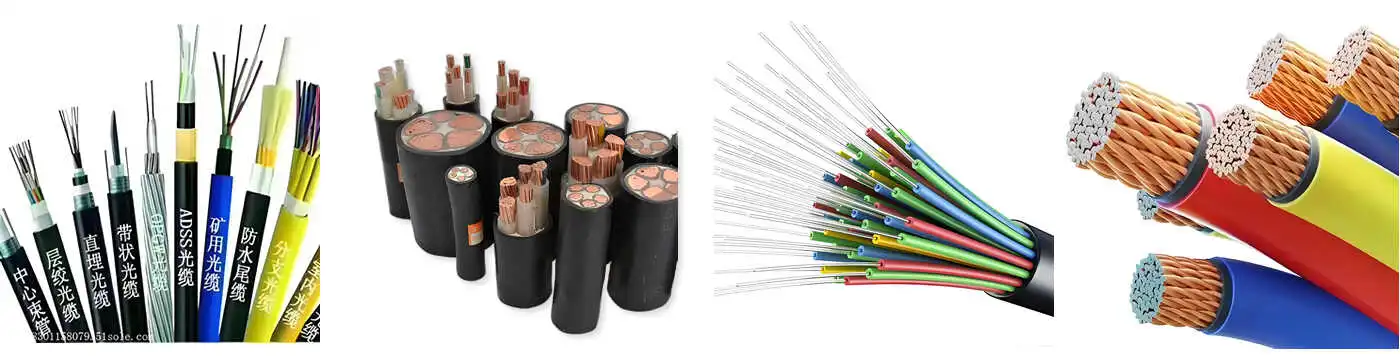

Wires and cables made of HDPE, PVC, LDPE, XLPE, LSHF, TPU, low smoke and halogen-free, fluoroplastic Teflon (high temperature), and silicone rubber insulation materials. Widely used in electronic wires, special cables, power cables, building cables, insulation sheaths, telephone cables, military products, power cables, audio cables, network cables, insulation sheaths, power cables, insulation sheaths, air pipes, copper cable lock ropes, insulation and sheaths, automotive cables, etc.
| Optical Cable Vertical Color Code Extruder Configuration | ||||||||||
| Model | Drive Motor Power(kW) | Screw Speed(rpm) | Max Output(kg/h)PE | |||||||
| Φ20/25 | 3 | 90 | 5 | |||||||
| Φ25/25 | 3 | 90 | 8 | |||||||
| Φ30/25 | 5.5 | 90 | 18 | |||||||
| Φ40/25 | 11 | 90 | 25 | |||||||
| Φ45/25 | 11 or 15 | 90 | 30 | |||||||
| Φ50/25 | 15 or 18.5 | 90 | 45 | |||||||
| Tightly Wrapped Extruder Configuration(PVC LSZH HTRREL PA) | ||||||||||
| Model | Drive Motor Power(kW) | Screw Speed(rpm) | Max Output(kg/h)pvc | |||||||
| Φ30/25 | 7.5 | 110 | 18PVC | |||||||
| Φ30/28 | 5.5KW | 110 | 22PVC | |||||||
| Φ45/25 | 15 | 90 | 40PVC | |||||||
| Φ45/25 | 11 | 90 | 40PVC | |||||||
| Secondary Plastic PBT Extruder Configuration | ||||||||||
| Model | Drive Motor Power(kW) | Screw Speed(rpm) | Max Output(kg/h) | |||||||
| Φ45/30 | 18.5 | 120 | 50 | |||||||
| Φ50/30 | 18.5/22 | 120 | 65 | |||||||
| Φ60/25 | 30 | 100 | 80 | |||||||
| Φ60/30 | 30 | 100 | 80 | |||||||
| Φ60/25 | 37 | 100 | 110 | |||||||
| Φ65/30 | 37 | 100 | 110 | |||||||
| PE PVC Sleeve Ordinary Screw Extruder Configuration | ||||||||||
| Model | Drive Motor Power(kW) | Screw Speed(rpm) | Max Output(kg/h) | |||||||
| Φ65/25 | 37 | 100 | PE | pvc | ||||||
| 90 | 110 | |||||||||
| Φ70/25 | 37 | 100 | 110 | 130 | ||||||
| Φ80/25 | 75 | 93.75 | 150 | 180 | ||||||
| Φ90/25 | 90 | 93.75 | 180 | 240 | ||||||
| Φ100/25 | 90 | 93.75 | 240 | 300 | ||||||
| Φ120/25 | 110 | 75 | 300 | 360 | ||||||
| Φ150/25 | 160 | 75 | 550 | 600 | ||||||
| PE PVC Sleeve High Efficiency Screw Extruder Configuration | ||||||||||
| Model | Drive Motor Power(kW) | Screw Speed(rpm) | Max Output(kg/h) | |||||||
| Φ65/25 | 37 | 100 | PE | pvc | ||||||
| 130 | 160 | |||||||||
| Φ70/25 | 45 | 100 | 170 | 240 | ||||||
| Φ80/25 | 75 | 93.75 | 250 | 350 | ||||||
| Φ90/25 | 90 | 93.75 | 350 | 450 | ||||||
| Φ100/25 | 110 | 93.75 | 400 | 550 | ||||||
| Φ120/25 | 132 | 75 | 520 | 800 | ||||||
| Φ150/25 | 185 | 75 | 850 | 1200 | ||||||
| Fluorine Plastic Extruder Configuration | ||||||||||
| Model | Drive Motor Power(kW) | Screw Speed(rpm) | Max Output(kg/h) | |||||||
| Φ25/25 | 5.5 | 80 | 8 | |||||||
| Φ30/25 | 7.5 | 80 | 15 | |||||||
| Φ45/25 | 11 | 80 | 25 | |||||||
| Φ65/25 | 30 | 100 | 60 | |||||||
FAQs
What types of products can we offer?
Product Category:
| Sheet extruder screw cylinder | Blow film extruder screw barrel | Blow molding extruder screw barrel | Recycling granulation extruder screw cylinder |
| Wire and cable extruder screw | Plastic steel strip extruder screw barrel | Wire drawing extruder screw barrel | Film coated extruder screw barrel |
| Cast film extruder screw tube | Plate extruder screw barrel | Spinning extruder screw barrel | Conical twin-screw tube |
| Parallel twin-screw barrel | Injection molding machine screw cylinder | Food extruder screw tube | Chemical extruder screw barrel |
| Non standard screw cylinder | Customized extruder | ||
If some screw products do not have a list, please feel free to contact us by email and we will reply within 24 hours!
What logistics do we ship through?
We can quickly reach any country and region through sea freight, air freight, international express delivery, and other transportation methods. We have stock of standard sized screws and barrels, and once confirmed by the customer, they can be delivered within 5-7 days.
Can it be customized as per our requirements?
We have many experienced engineers who can quickly customize various types and types of screw barrel according to customer requirements. Before produce, technical will check every detail with salesman according with clients’ request. Under produce, every step will be inspected before next process. And every salesman will follow some time to make sure 100% correct and reduce communication error and work undelay. We put quality at a high level and the price is middle level.
What is our ordering process?
What services are included in the after-sales service?
Our sales team is familiar with the production and export processes and has nearly 10 years of customer service experience. Every salesperson can ensure that the customer’s requirements and our screw barrel are 100% accurate in production details. We will solve any cargo issues until the customer is satisfied.
