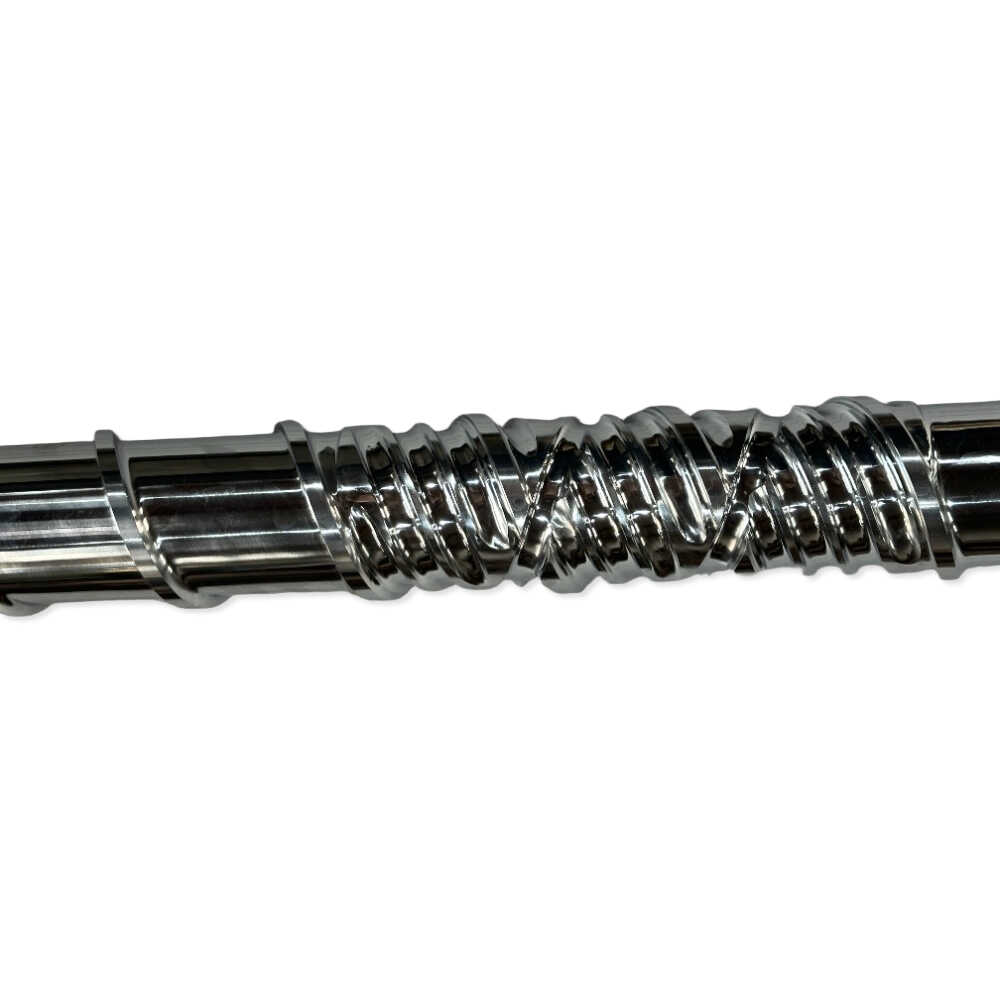

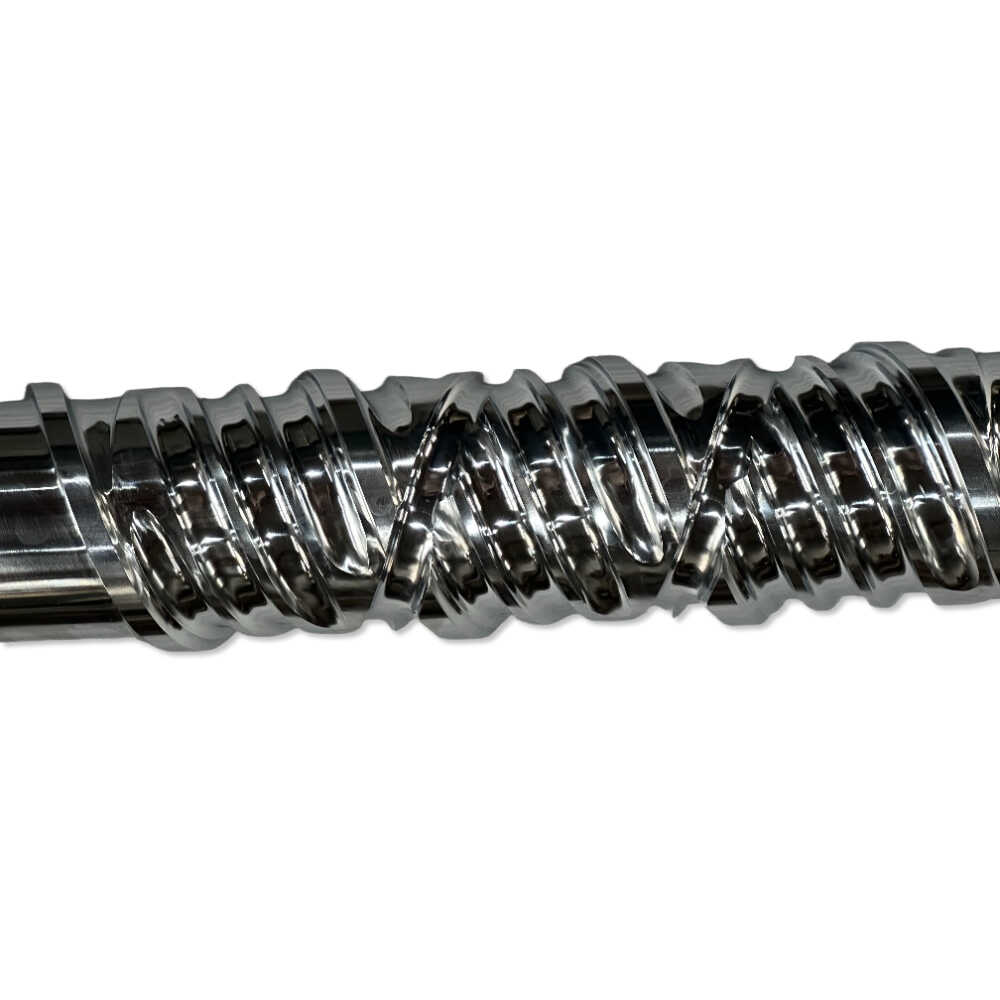

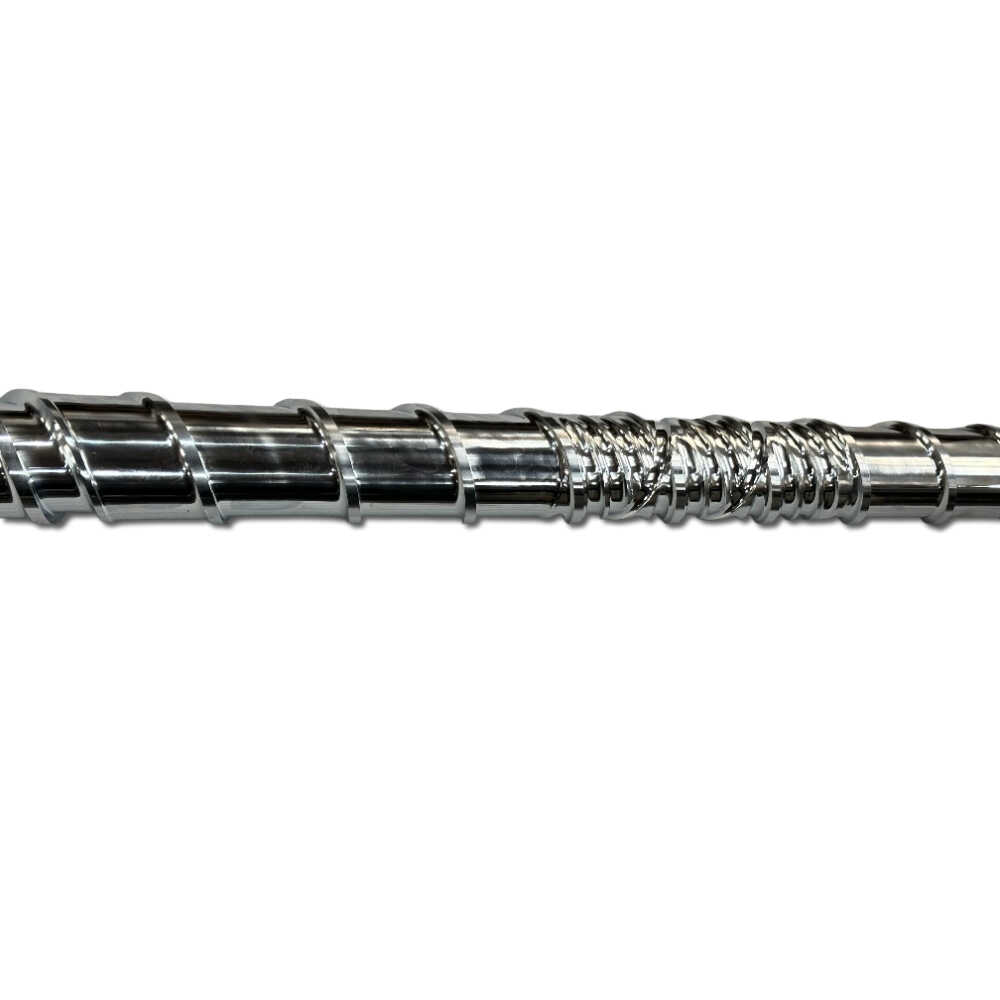

TPU car wrap film extruder screw barrel
PRODUCT PARAMETERS
JED SCREW 杰德螺杆
Description
TPU (thermoplastic polyurethane) screws are core components of injection molding or extrusion equipment specifically designed for processing TPU materials. Their design must take into account both material properties and processing requirements. The following is a summary of key information:
I. Key Screw Design Points
Structural Parameters
The recommended length-to-diameter ratio (L/D) is 16-20, and the compression ratio is 2.5-3.0. The design consists of a feeding section (0.5L), a compression section (0.3L), and a metering section (0.2L).
High torque is required to avoid speed fluctuations that can lead to uneven plasticization. Screws with short compression sections are not suitable due to the high shear forces.
Materials and Processing
Molten TPU is non-corrosive, so the screw does not require special alloy coatings, but chrome plating is required for wear protection.
The temperature control range is typically 190-220°C (hard alloys can reach 240°C). Precise control of the barrel and nozzle temperatures is required.
II. Application Scenarios
Injection Molding: Reciprocating screw injection molding machines are preferred to ensure melt uniformity and offer the advantages of low-temperature processing. Extrusion processing: For example, TPU cast film or solid strip production requires a highly transparent or wear-resistant screw barrel (e.g., a nitrided screw with a diameter of 35-350mm).
FAQs
What types of products can we offer?
Product Category:
| Sheet extruder screw cylinder | Blow film extruder screw barrel | Blow molding extruder screw barrel | Recycling granulation extruder screw cylinder |
| Wire and cable extruder screw | Plastic steel strip extruder screw barrel | Wire drawing extruder screw barrel | Film coated extruder screw barrel |
| Cast film extruder screw tube | Plate extruder screw barrel | Spinning extruder screw barrel | Conical twin-screw tube |
| Parallel twin-screw barrel | Injection molding machine screw cylinder | Food extruder screw tube | Chemical extruder screw barrel |
| Non standard screw cylinder | Customized extruder | ||
If some screw products do not have a list, please feel free to contact us by email and we will reply within 24 hours!
What logistics do we ship through?
We can quickly reach any country and region through sea freight, air freight, international express delivery, and other transportation methods. We have stock of standard sized screws and barrels, and once confirmed by the customer, they can be delivered within 5-7 days.
Can it be customized as per our requirements?
We have many experienced engineers who can quickly customize various types and types of screw barrel according to customer requirements. Before produce, technical will check every detail with salesman according with clients’ request. Under produce, every step will be inspected before next process. And every salesman will follow some time to make sure 100% correct and reduce communication error and work undelay. We put quality at a high level and the price is middle level.
What is our ordering process?
What services are included in the after-sales service?
Our sales team is familiar with the production and export processes and has nearly 10 years of customer service experience. Every salesperson can ensure that the customer’s requirements and our screw barrel are 100% accurate in production details. We will solve any cargo issues until the customer is satisfied.
