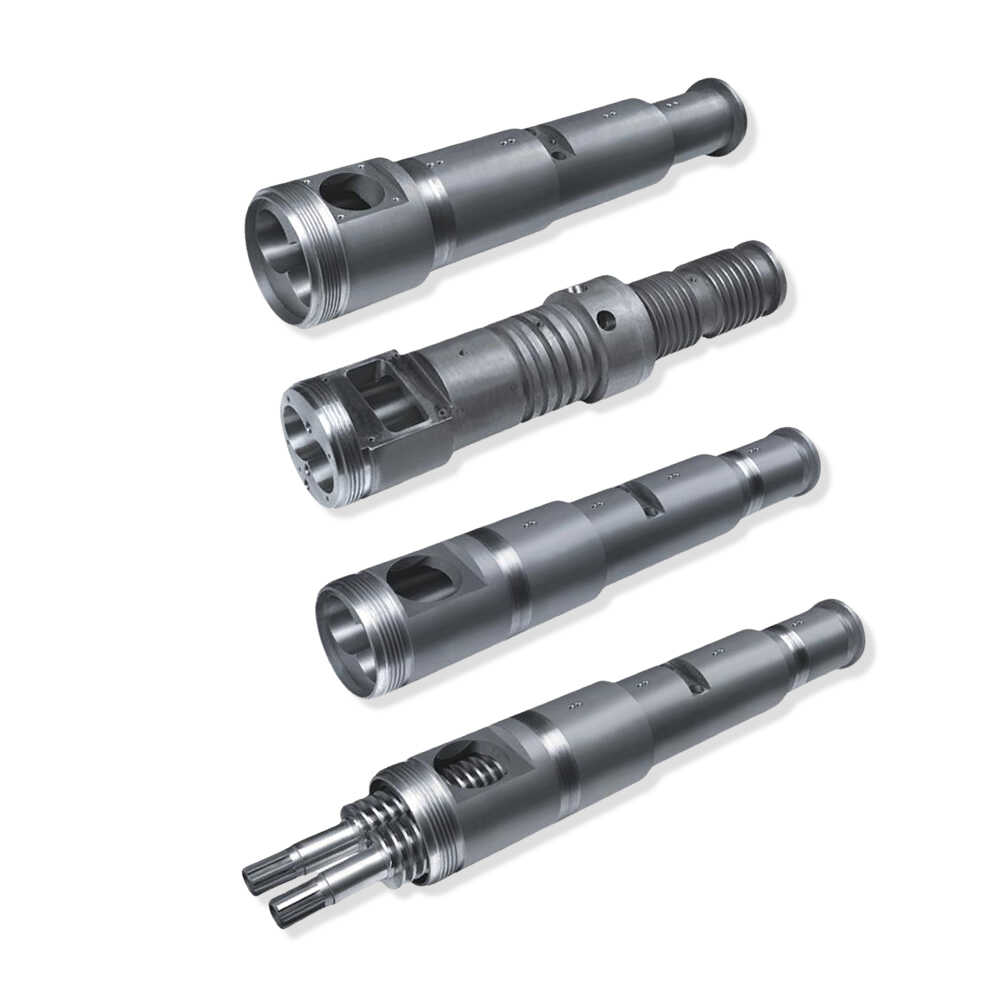

65/132 Conical Twin Screw Barrel
PRODUCT PARAMETERS
JED SCREW 杰德螺杆
Description
Conical twin screw and barrel technical specifications:
| φ35/75 | φ40/84 | φ45/90 | φ45/97 | φ45/100 | φ50/105 | φ51/105 |
| φ55/110 | φ55/120 | φ58/125 | φ61/125 | φ65/120 | φ65/132 | φ68/147 |
| φ70/140 | φ80/143 | φ80/156 | φ80/174 | φ92/188 | φ95/191 | φ105/216 |
| Design Details | Screw I TYPE:inside is water/oil cooling system II TYPE:outside is oil cooling system Barrel I TYPE:outside is air cooling system II TYPE:out side is copper pipe around cooling system |
| Accessories | Stop ring+washers to adjust the space between screw and barrel |
| Technical Specification | Material:High quality 38CrMoAlA Process:Advanced nitriding & bimetallic process Hardness After Hardening & Tempering:HB280-320 Nitrided Hardness:HV900-1000 Nitrided Case Depth:0.45-0.8mm Nitrided Brittleness:Less than Grade 2 Surface Roughness:Ra 0.4 Screw Straightness:0.015mm Alloy Hardness:HRC 50-65 Alloy Depth:0.8-2.0mm |
| MOQ | 1 set (1 pair of screws and 1 pc barrel) |
| Type | Conical Twin Screw and Barrel |
FAQs
What types of products can we offer?
Product Category:
| Sheet extruder screw cylinder | Blow film extruder screw barrel | Blow molding extruder screw barrel | Recycling granulation extruder screw cylinder |
| Wire and cable extruder screw | Plastic steel strip extruder screw barrel | Wire drawing extruder screw barrel | Film coated extruder screw barrel |
| Cast film extruder screw tube | Plate extruder screw barrel | Spinning extruder screw barrel | Conical twin-screw tube |
| Parallel twin-screw barrel | Injection molding machine screw cylinder | Food extruder screw tube | Chemical extruder screw barrel |
| Non standard screw cylinder | Customized extruder | ||
If some screw products do not have a list, please feel free to contact us by email and we will reply within 24 hours!
What logistics do we ship through?
We can quickly reach any country and region through sea freight, air freight, international express delivery, and other transportation methods. We have stock of standard sized screws and barrels, and once confirmed by the customer, they can be delivered within 5-7 days.
Can it be customized as per our requirements?
We have many experienced engineers who can quickly customize various types and types of screw barrel according to customer requirements. Before produce, technical will check every detail with salesman according with clients’ request. Under produce, every step will be inspected before next process. And every salesman will follow some time to make sure 100% correct and reduce communication error and work undelay. We put quality at a high level and the price is middle level.
What is our ordering process?
What services are included in the after-sales service?
Our sales team is familiar with the production and export processes and has nearly 10 years of customer service experience. Every salesperson can ensure that the customer’s requirements and our screw barrel are 100% accurate in production details. We will solve any cargo issues until the customer is satisfied.
