Non standard customized double-layer extruder
PRODUCT PARAMETERS
JED SCREW 杰德螺杆
Description

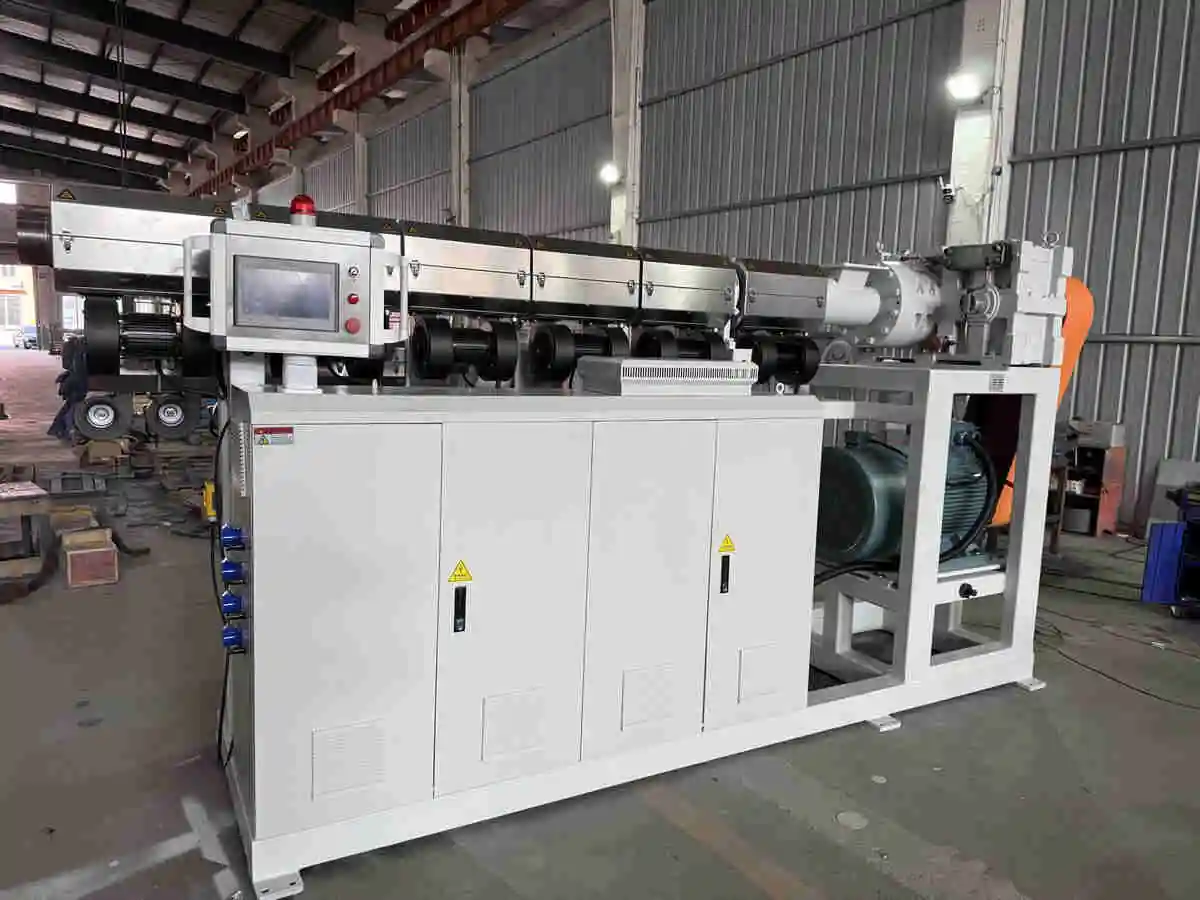

100-33 extruder mechanical technology part

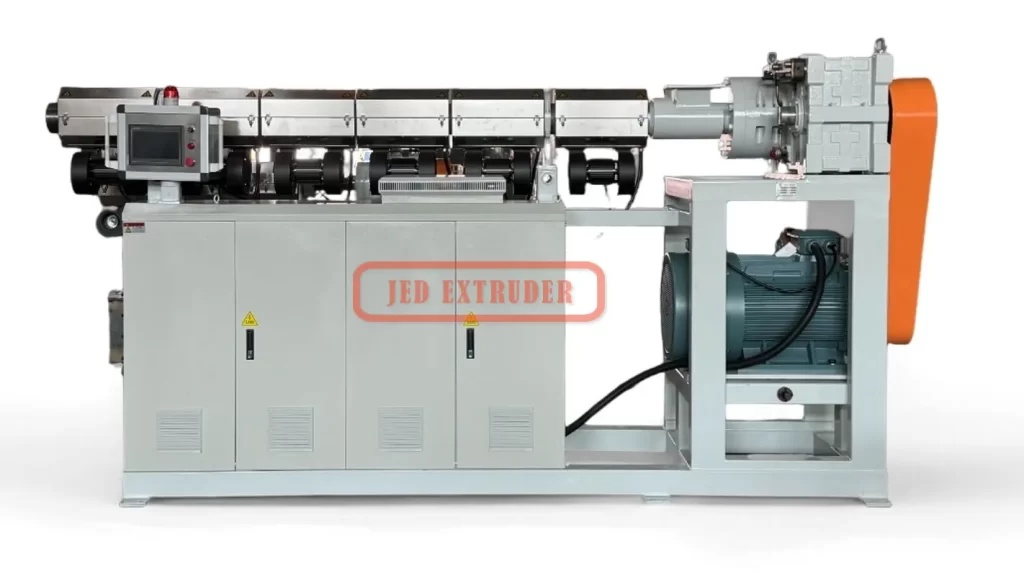

- Φ 100/33 extruder
Screw diameter Φ 100
Length to diameter ratio 33:1
Drive motor power AC Jinyi variable frequency 90KW/380V/50HZ
Barrel heating zone 7 X 10KW/380V
Fan cooling zone 7 X550W/380V
Rated speed of screw 75rpm
Four reserved areas
The screw barrel is made of high-quality nitriding steel with a nitriding depth of 0.5-0.7mm, suitable for EVA nitriding hardness above HV850 - Main configuration:
1) Motor: Adopting Jinyi 90KW AC variable frequency motor
2) Gearbox: Domestic high-quality gearbox 250
3) Heating method: The barrel adopts ceramic heating coils, with a heating temperature of room temperature~300C;
4) Cooling method: There is a tap water cooling device in the feeding area, and a fan is installed below the heating point in each area for automatic cooling:
5) Temperature measuring element: Choose K-type;
6) Protective cover and hopper: circular made of stainless steel material;
7) Center height: The center height of the extruder is 1850mm,
8) Transmission mode: belt pulley
9) Flange: discharge port threaded connection
10) Pipeline: Concealed design of heating lines in each area, centralized and located in the distribution box,
Electrical part

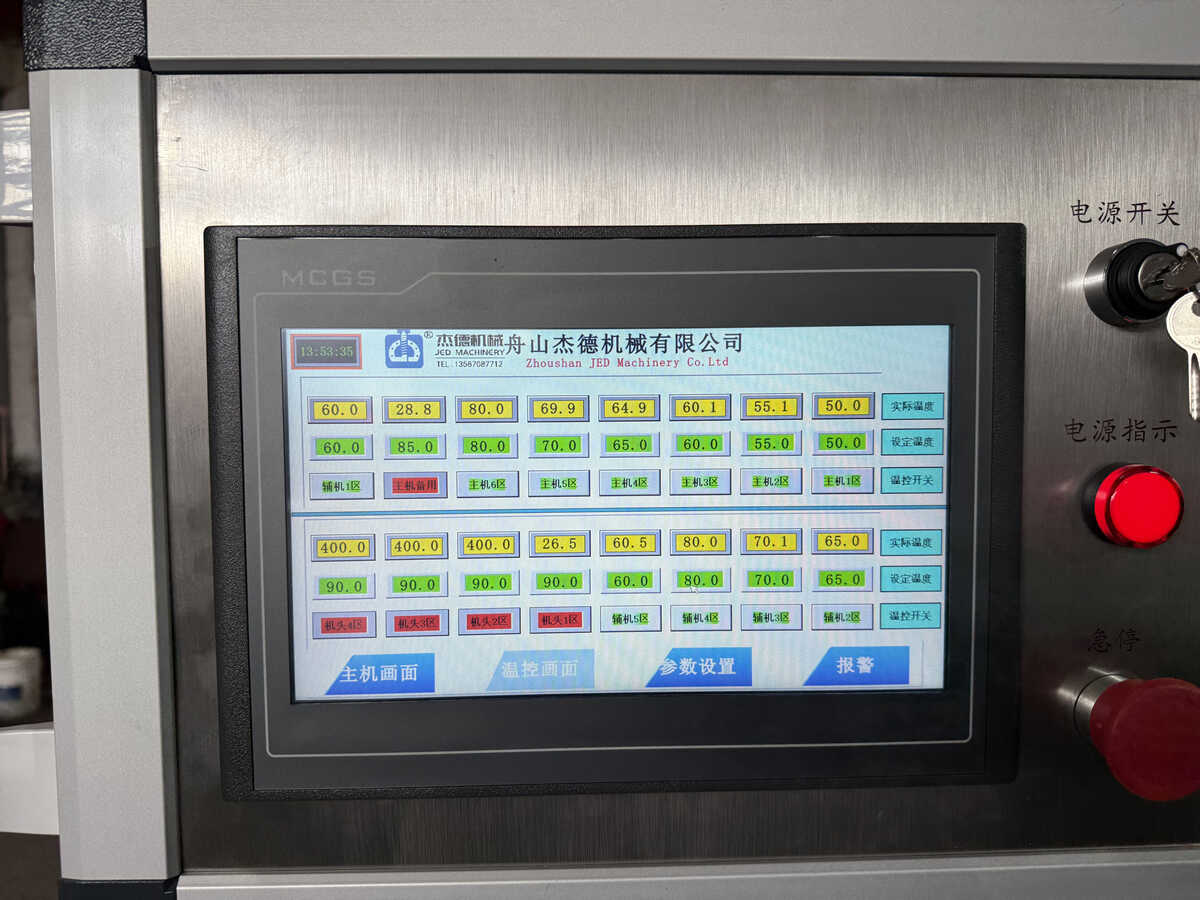

Huibang PLC, touch screen Kunlun communication status
Switch Chint
Inverter/Lange
Heating solid state, contactor Siemens
Integrated control cabinet piano style
machine
45-25 Extruder Mechanical Technology Part

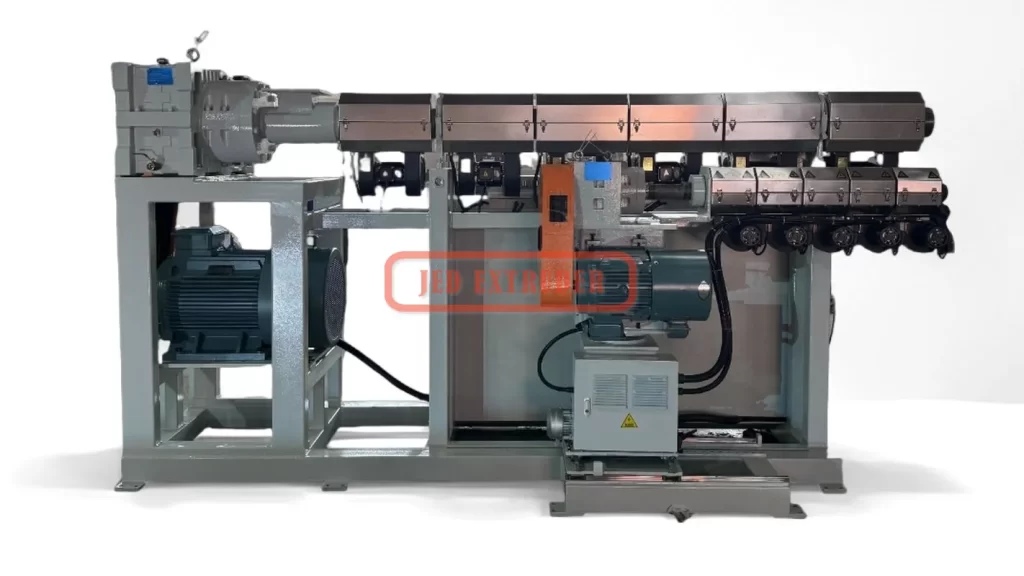

- Φ 45/25 extruder
Screw diameter Φ 45
Length to diameter ratio 25:1
Drive motor power AC Jinyi frequency converter 11KW/380V/50HZ
Barrel heating zone 4 X 2.0Kw/220V
Fan cooling zone 4 X60W/380V
Rated speed of screw: 80rpm
Number of reserved areas
The screw barrel is made of high-quality nitriding steel with a nitriding depth of 0.5-0.7mm, suitable for hot melt adhesive extrusion, and a nitriding hardness of HV850 or above - Main configuration:
1) Motor: Adopting Jin Yi 11KW AC variable frequency motor
2) Gearbox: Domestic high-quality gearbox 133

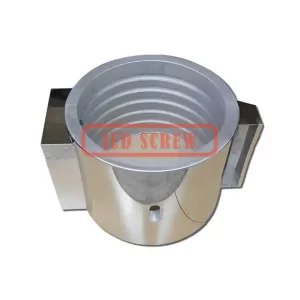

3) Heating method: The barrel adopts a cast aluminum heating ring, with a heating temperature of room temperature~300C;
4) Cooling method: There is a tap water cooling device in the feeding area, and a fan is installed below the heating point in each area for automatic cooling:
5) Temperature measuring element: Choose K-type;
6) Protective cover and hopper: Q235 spray painted treatment
7) Center height: 45 extruders are placed parallel to 100 extruders, with a center height of 1550mm. The extruder can be adjusted in height by driving a screw through a motor with a power of 550W/380V. A lifting button is installed at the outlet, and the extruder can move forward and backward or horizontally through a linear guide rail, which is locked with bolts. Equipment color: to be determined
8) Transmission mode: belt pulley
9) Flange: discharge port threaded connection
10) Pipeline: Concealed design of heating lines in each area, centralized and located in the distribution box,
Electrical part
Integrated with 100 in one control cabinet, switch Chint
Inverter/Lange
Heating solid state, contactor Siemens
