Cincinnati Extruder Screw: Replacement, Compatibility, and Performance Improvement for PVC Lines
A Cincinnati extruder screw is a core component in many long-running PVC extrusion lines worldwide. If you are searching for Cincinnati extruder screw, you are most likely looking for a replacement screw, a wear-resistant upgrade, or a way to restore stable output on an existing machine. This article explains what to consider to achieve reliable performance and long service life.

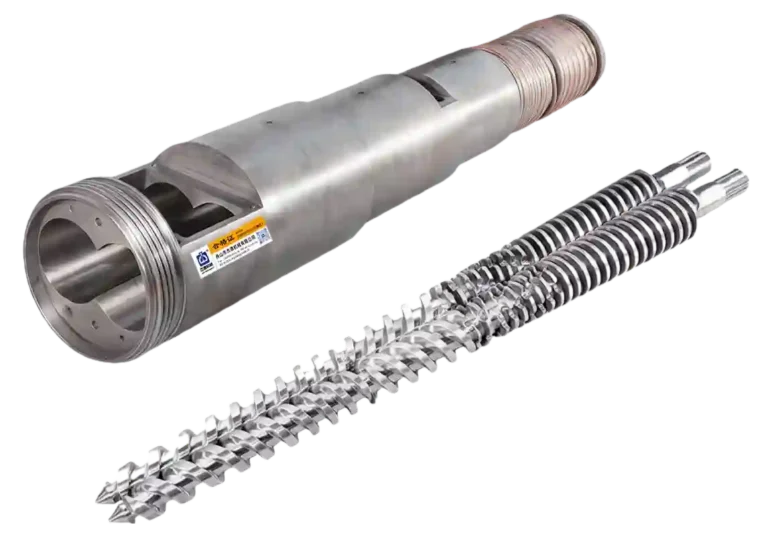

Cincinnati conical twin-screw specifications
| φ52/φ105 | φ55/φ110 | φ58/φ125 | φ62/φ130 | φ68/φ147 | φ72/φ151 | φ80/φ156 |
| φ84/φ156 | φ40/φ84 | φ45/φ90 | φ45/φ97 | φ45/φ100 | φ50/φ105 | φ51/φ105 |
| φ55/φ110 | φ55/φ120 | φ58/φ125 | φ61/φ125 | φ65/φ120 | φ65/φ132 | φ68/φ147 |
| φ70/φ140 | φ80/1φ43 | φ80/φ174 | φ92/188 | φ95/1φ91 | φ105/φ216 |
Why Cincinnati Extruder Screws Are Application-Specific
Cincinnati Milacron extruders—especially those used for PVC pipe, profile, and sheet production—are designed to operate at high torque and relatively low screw speed. This means the screw must deliver:
- Stable PVC fusion
- Consistent pressure build-up
- Low shear to avoid degradation
- Long-term wear resistance
A generic screw design often fails to meet these requirements, even if the dimensions look correct.
When Do You Need a Replacement Cincinnati Extruder Screw?
Common signs include:
- Gradual output reduction at the same RPM
- Higher melt temperature than before
- Black dots, streaks, or surface defects in PVC products
- Visible wear on screw flights or root
Delaying replacement can lead to barrel damage, increasing downtime and total maintenance cost.
Direct Replacement vs Optimized Screw Design
When sourcing a Cincinnati extruder screw, there are two main approaches:
1. OEM-Matching Replacement Screw
- Same geometry as the original
- Minimal process adjustment
- Suitable when formulation and output remain unchanged
2. Optimized Replacement Screw
- Geometry adapted for current PVC formulations
- Improved wear resistance for high CaCO₃ or recycled material
- Better output stability and longer service life
If your formulation has changed over the years (CaZn stabilizer, higher filler content), optimization usually delivers better ROI than a pure copy.
Learn more about our screw & barrel manufacturing capabilities:
Internal link: https://www.jed-machinery.com/
Material Options for Cincinnati Extruder Screws
Nitrided 38CrMoAlA Screw
- Standard solution
- Cost-effective for conventional PVC
- Limited wear resistance with high fillers
Bimetallic Screw
- Excellent abrasion and corrosion resistance
- Recommended for high CaCO₃ or recycled PVC
- Significantly longer operating life
Correct material selection is essential for maintaining stable pressure and output over time.
Typical Applications
Cincinnati extruder screws are widely used in:
- PVC pipe extrusion lines
- PVC window and technical profiles
- PVC sheet and panel production
All these applications require controlled plasticization rather than aggressive shear.
For general background on PVC extrusion standards and processing behavior, you may refer to:
External link: https://www.jed-machinery.com/
What Must Be Confirmed Before Manufacturing
A professional manufacturer should confirm:
- Extruder model and screw type
- Screw diameter, length, and compression ratio
- PVC formulation (stabilizer type, CaCO₃ percentage)
- Target output and operating RPM
Technical drawing confirmation before production is critical to ensure correct installation and performance.
Why Choose Us for Cincinnati Extruder Screws?
We specialize exclusively in screw and barrel manufacturing, with strong experience in Cincinnati-compatible extrusion systems. Our advantages include:
- Proven compatibility with Cincinnati extruders
- Nitrided and bimetallic screw options
- Optimization for CaZn and high-filler PVC
- Strict QC: hardness testing, profile accuracy, surface finish
Our focus is not just replacement—but long-term, stable extrusion performance.
Contact Us for Cincinnati Extruder Screw Solutions
If you are planning to replace or upgrade a Cincinnati extruder screw, contact us directly:
Zhoushan Jed Machinery Co., Ltd.
Website: https://www.jed-machinery.com/
Email: jed@jed-machinery.com
WhatsApp / WeChat: +86 13587087712
You may send drawings, machine nameplates, or production issues—we will respond quickly.
